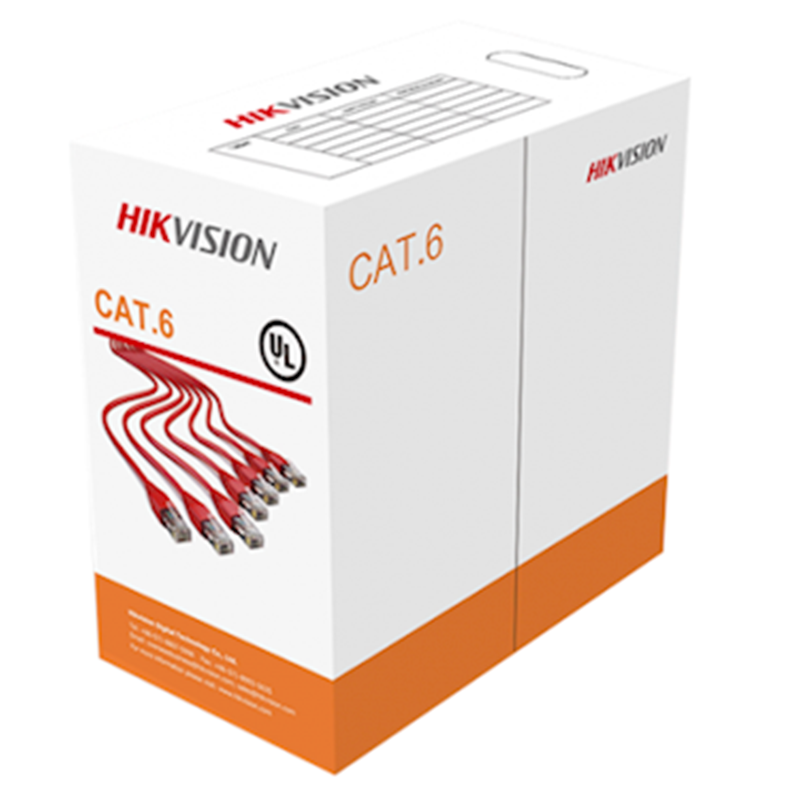

Afbeeldingen van DS-1LN6-UU

DS-1LN6-UU

305 m CAT6 UTP Network Cable (Solid Copper, 0.565 mm, CM)

Kenmerken

Artikelnummer: DS-1LN6-UU

Beschikbaarheid:

143 op voorraad

Cable
Category:		U/UTP CAT6-4P-PVC-CM
Test Standard:		ISO/IEC11801?TIA-568-C.2 ?YD/T1019

Conductor
Material:		SOLID-Bare Copper
Copper content:
Nom.O.D.(mm):		0.565 up +0.005 down -0.005

Insulation
Material:		HDPE
Diameter:		1.02±0.03mm

Sheath
Thickness:		0.55±0.05 mm
External O.D.:		6.2±0.4 mm
Surface:		Clean,Frap,Satiation
Material:		PVC(complies RoHS),CM
Color:		Multiple

Surface Printing
Letter height:		3.0±0.3mm
Color:		Orange
Print error & Space:		≤±0.5%,1m

General
Core Color:		1 White- Blue /Blue 2 White-Orange /Orange 3 White-Green /Green 4 White- Brown /Brown
Packing:		Wooden Tray & Carton
Carton dimension:		Per request
Packing length:		305±1.5m
Rip-cord:		Yes
Drain wire:		No
Sheath Physical Properties:		Before Aging Tensile Strength (Mpa) ≥13.5 Elongation(%) ≥150 Aging Period (?×hrs) 100?×24h×10d After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125 Cold bend(-20±2?×4h) 8×Cable O.D.,No visible cracks
Electrical Characteristics:		1.0-250.0MHz Impedance ((Ω) 100±15 1.0-250.0MHz Delay Skew (ns/100m) ≤45 DC Resistance (Ω/100m) max 9.38 DC Conductor Resistance Unbalance (%) max 5.0
Ambient temperature:		-20? - 75?
